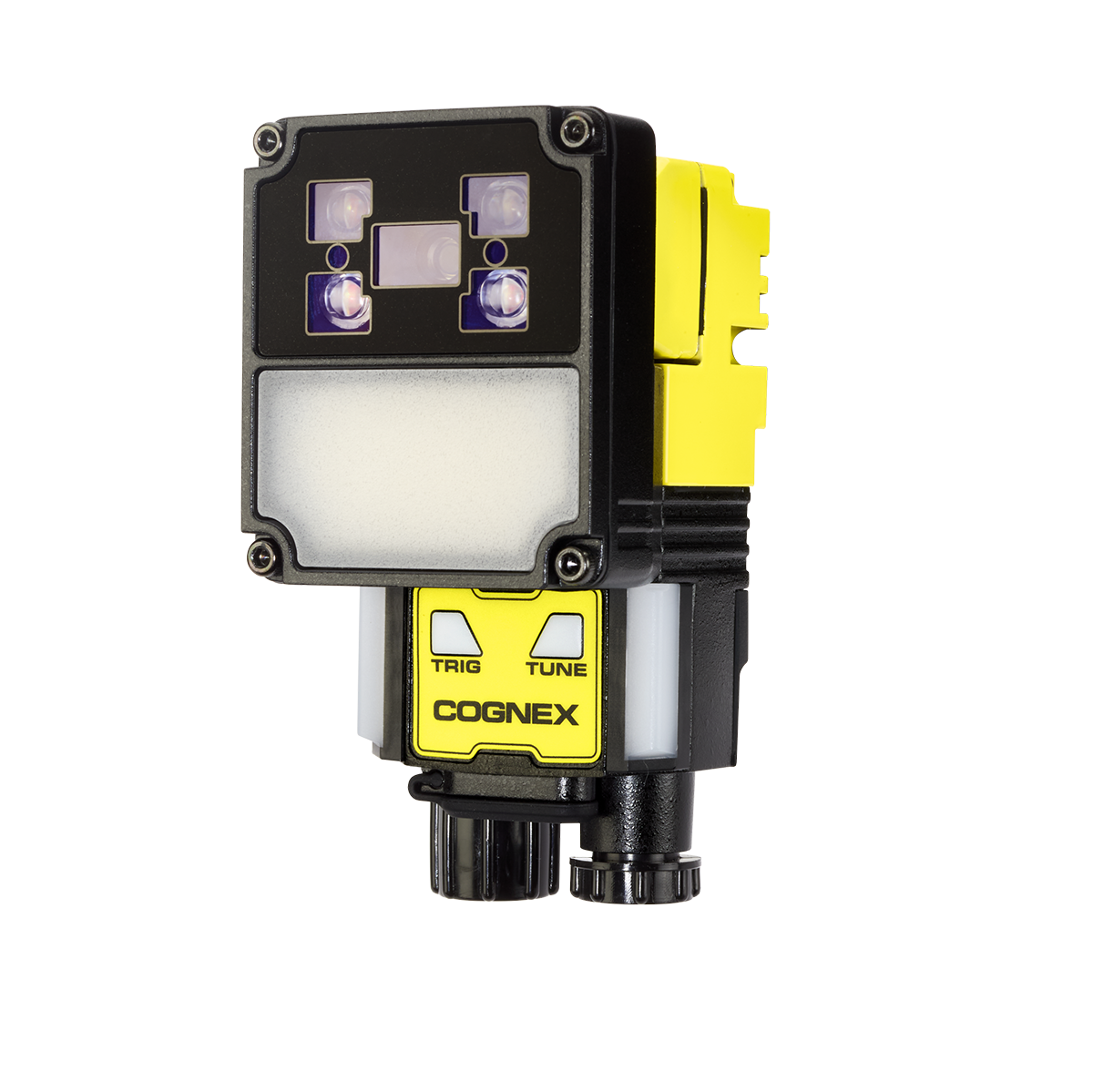

DM290X-06-LM

COGNEX: AI-Powered Barcode Reader – Dataman DMR-290X, Multi Light 1.6 MP mit 6.2MM HSLL

● Image Resolution: 1.6MP (1440 x 1080 Pixel)

● Image Sensor: 1/3-Zoll-CMOS, Global Shutter

● Image Sensor Properties: Diagonal size 6,21 mm, 3,45 μm Pixel size (H)

Lens

● High Speed Liquid Lens (HSLL)

● Focal Lens 6.2mm

Lens Cover

● without cover

● Options for the front cover: polarized/semi-polarized and transparent

Lighting

● HPIL – High powered integrated light

● 4 LED lights (red) and 1 light (white)

AI-Powered decoding

● 1D- and 2D-Codes

● Printed Codes

● DPM-Codes (Direct Part Mark)

● Multi-Code reading

● Multi-Reader-synch

Image analysis technologies

● Multi-Reader Sync

● HDR

● High Speed Decoding

Reading Method

● 1D Max

● 2D Max

● PowerGrid

Communications

● Serial, Ethernet, USB-C³

● Keyboard compatibility

Inputs / Outputs

● 2x input opto-isolated

● 2x output opto-isolated

● 2x configurable as In- and Output

Additional features

● IP Protection: IP67

● RoHS Certified

● Cable not included, order separately
