IS8900MX-01-SA

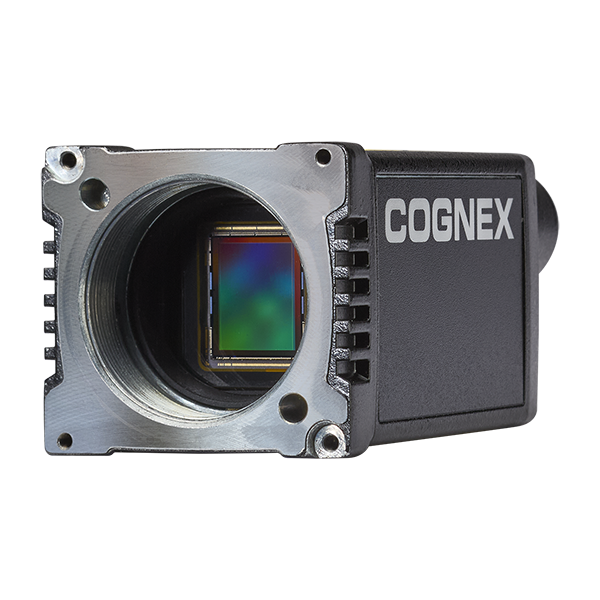

COGNEX In-Sight 8900 Mono, System Only, All EL tool , C-Mount Lens Connector

● Resolution: 800×600 SVGA

● Bit Depth: 8-Bit Color Depth

● Mounting: Straight

● Mono Configuration, Max

● Image Capture Speed per Second: 142 fps

● Sensor Type: CMOS, Global Shutter

● Sensor Features: 2.7 mm diagonal, 2.74 x 2.74 um square pixels

● Electronic Shutter Speed: 29.1 us to 200,000 us

Toolset

● All EL tool

Software

● EasyBuilder and Spreadsheet

Lens Connector

● C-Mount

Communikation

● Network Communication: 1 Ethernet Port

● Industrial Protocols: Ethernet/IP, PROFINET, SLMP, ModbusTCP, (S)FTP, RS-232C

● Power over Ethernet (PoE) power supply

Inputs/Outputs Connectors

● Inputs: 1x Optoisolated

● Outputs: 2x High-Speed

Housing

● Die-cast Aluminum and Zinc

● IP40
