SM43-J-TA22

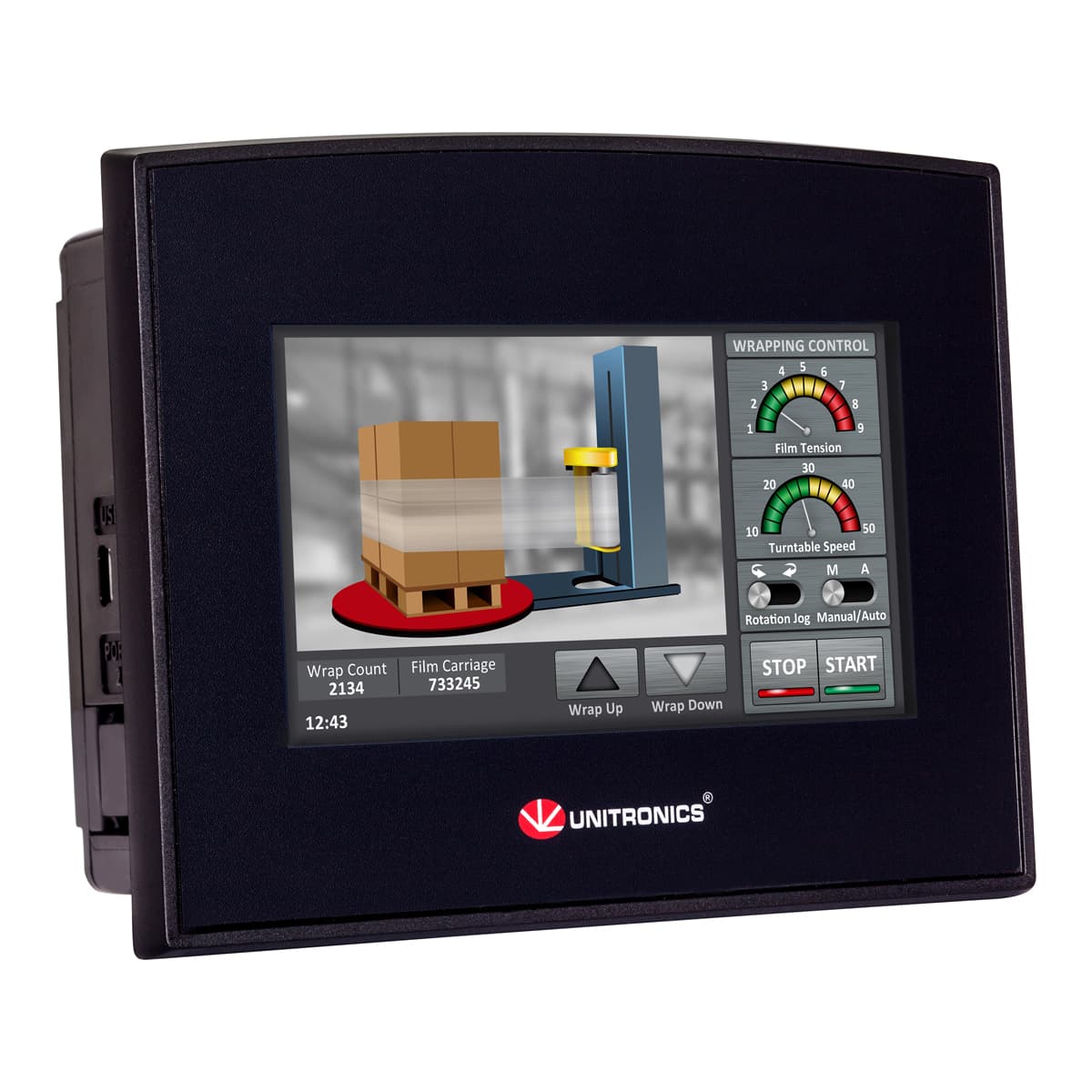

Samba 4.3″ PLC full-function PLC and built-in I/O configuration

● PLC, 4.3″ TFT, LCD-Display, Touchscreen resistive

● Display Resolution: 480×272

● Virtual Keyboard

● Integrated I/Os

● Expandable

Communication

● 1x Mini USB for programming

Add-on ports

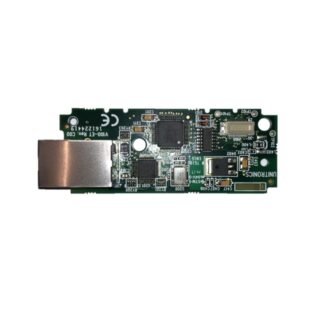

● 1x Seriell/Ethernet

● 1x CANbus

Inputs

● Digital: 12 Sink/Source

● HSC/Shaftencoder: 1, 30kHz, 32-bit

● Analog: 2, 0-10V, 0-20mA, 4-20mA, 12/14-bit

● Temperature Measurement: 2 PT100/TC

Outputs

● Transistor: 8, Source (pnp)

● PWM: 5, 0.5kHz

● Relay: None

● Analog: 2, 0-10V, 4-2mA, 12-bit*

Various Specifications

● Operating Voltage: 24VDC

* The total number of digital inputs listed includes highspeed and adaptable inputs.
