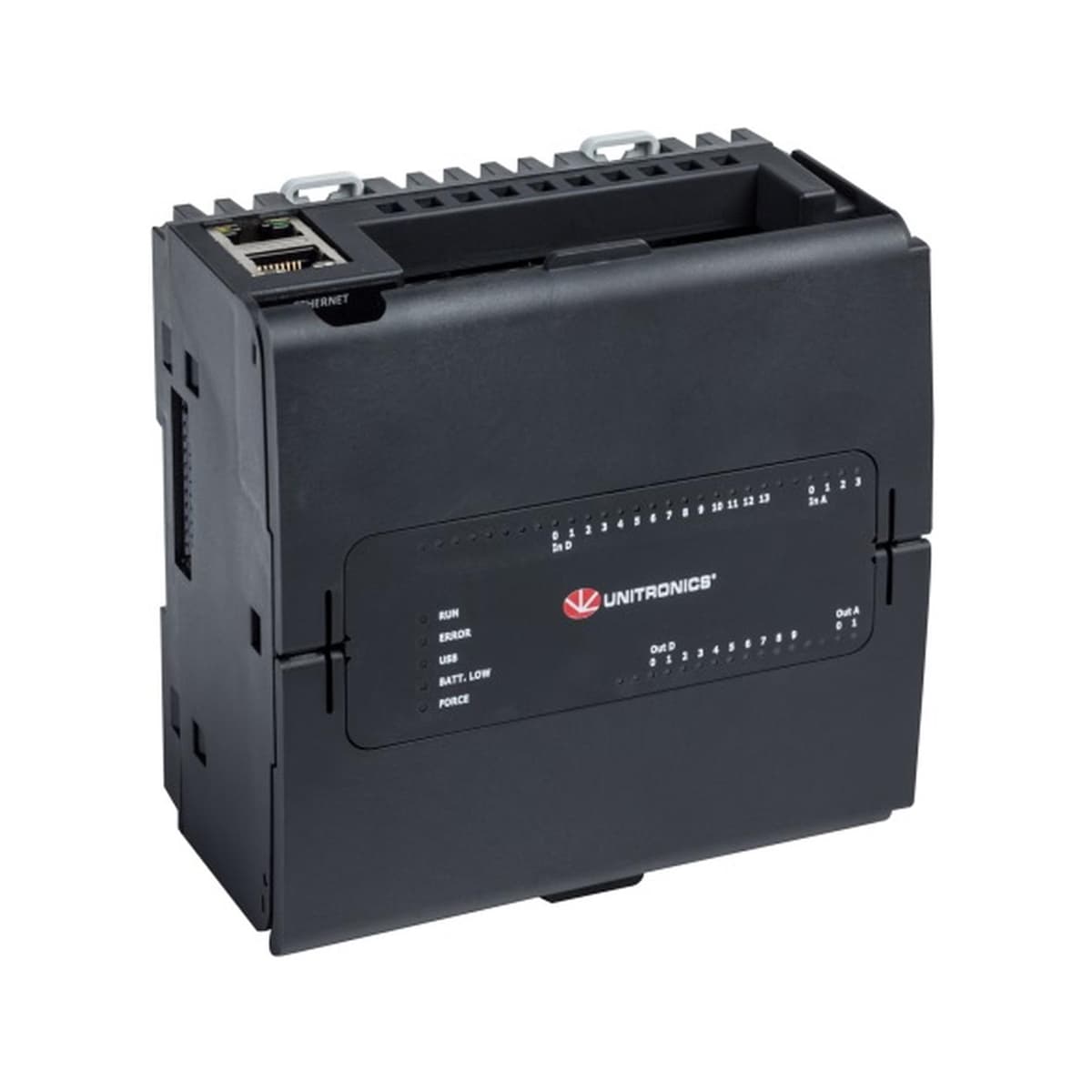

USC-B5-TA30

UniStream® SPS Programmable Controller

● PLC, no Display, Virtual HMI (VNC)

● Unistream Standard, BuiltIn I/O’s,

● Option: Display USL 5″, USL 7″, USP 5″, USP 7″, USP 10.4″, USP 15.6″

Communication

● 2x Ethernet

● 1x USB Host

● 1x USB Mini (Slave)

● (Modular Expand,1x RS232, 1x RS485, 1x CANopen)

Inputs

● Digital (Isolated): 14 Sink/Source

● HSC/Shaftencoder: 2, 90kHz, 32-bit

● Analog: 2(isolated), 0-10V, 0-20mA, 4-20mA, 14-bit

● Temperature Input, RTD/TC: 2(isolated), Thermoelement, PT100/NI100/NI120/PT1000/NI1000

Outputs

● Transistor (Isolated): 10, Source (pnp)

● PWM: 2, 3kHz

● Relay: None

● Analog: 2, 0-10V 12-bit, ±10V, 11-bit+ Zeichen 0-20mA, 4-20mA 12-bit

Protocols

●  MQTT Client • EtherNet/IP • Modbus TCP • CANopen, CANlayer2, UniCAN • SNMP

●  BACnet, KNX and M-Bus via gateway

Various Specifications

● Operation Voltage: 24VDC
