Dual-Head ECCO 95.010+

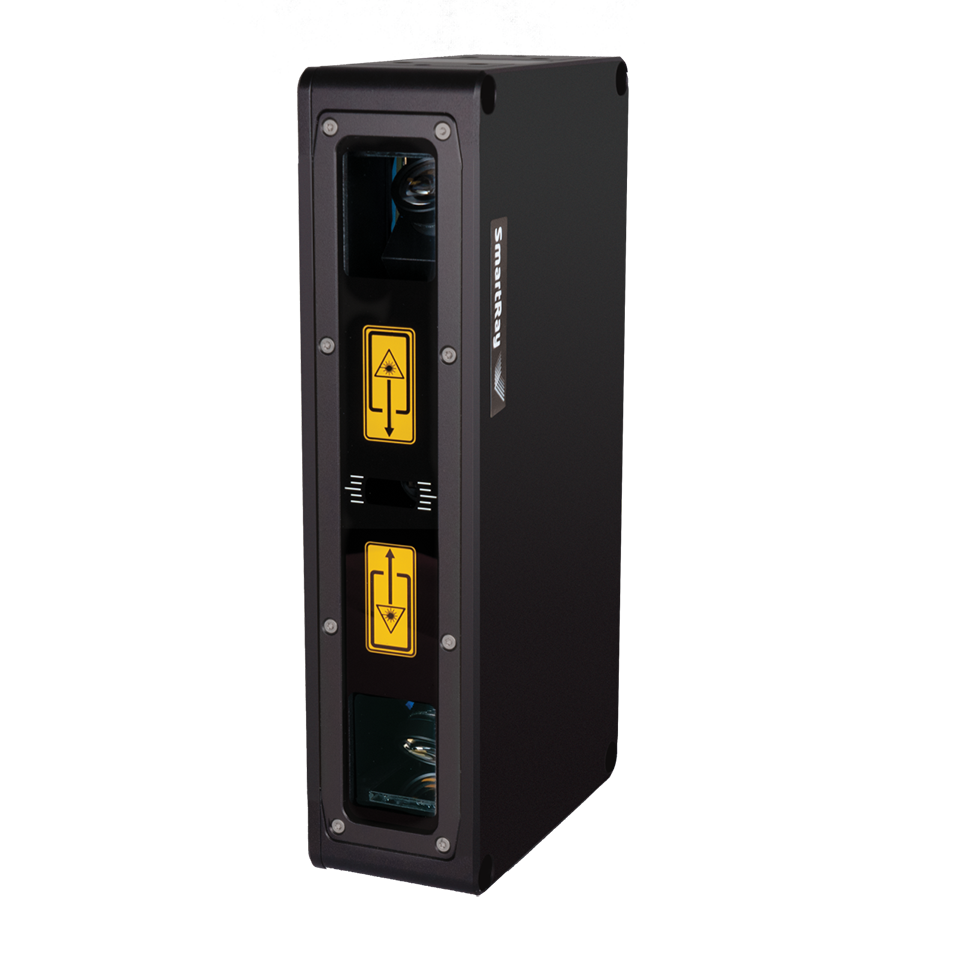

3D-Laser Scanner, SmartRay, Dual-Head ECCO 95.010+

● boîtier industriel compact

● Champ de Vision typique: 11 mm

● Région de Mesure: 4 mm

● Taux de scan: env. 1kHz jusqu’à 10 kHz

Résolution

● Résolution vertical: 0.37 – 0.45 µm

● Reésolution lateral: 5.8 – 6.8 µm

● Points max / 3D-Profile: 3840

Interface / Class de laser

● Interface communication: Gigabit Ethernet (1 Gbit/sec)

● Class de laser: 2M (Option 3R)

● Laser: 450 nm (bleu)

Entrées / Sorties

● Entrées: 2x, 5-24VDC

● Entrées: codeur quadrature, AB-Channel, RS422 standard

● Sorties: 2x, 24VDC (max. 20mA)

Trigger

● Start-Trigger (support entrées 1-2)

● Data-Trigger: Codeur quadrature (max. 1 MHz)

● Data-Tigger support entrées 2 (max. Datatrigger 10kHz)

Protéction, Boitié

● IP65

Alimentation

● 24 VDC, ± 15 % ripple | 8.5 W
