TRB140

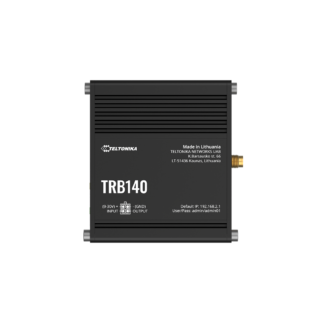

TELTONIKA: TRB140 – INDUSTRIAL 4G LTE GATEWAY

The TRB140 is a compact 4G LTE gateway for industrial IoT and M2M applications.

It provides reliable mobile connectivity, a Gigabit Ethernet port, and secure VPN support.

● Operating System: RutOS (OpenWrt-based)

● RAM: 64 MB

● Flash-Speicher: 16 MB

● CPU: ARM Cortex-A7, 1.2 GHz

● Dimensions: 74 × 25 × 64 mm

● Mounting: Integrated DIN-rail bracket; wall and flat surface mounting (additional kit required)

● Protection Class: IP30

Interfaces

● Ethernet: 1 × RJ45 (10/100/1000 Mbps)

● SIM: 1 × Mini SIM

● Power InpPower Input: 9 – 30 V DC, passive PoE (Mode B)

Communication

● Mobile: 4G LTE Cat 4, 3G, 2G

● Features: VPN (OpenVPN, WireGuard, IPsec), Modbus TCP, MQTT, Firewall, RMS support

Certifications:

● CE, UKCA, FCC, IC, CB, RCM, RoHS, REACH, WEEE

Scope of delivery TRB140003000 / Standard package:

● TRB140

● 9 W PSU

● 1x Mobile antenna (magnetic mount, SMA male, 3 m cable)

● Micro-USB cable (0.8 m)

● 1x hex key

● LAN cable

● QSG (Quick Start Guide)

● Packaging box

Official Product Page – Teltonika Networks TRB140
